Description

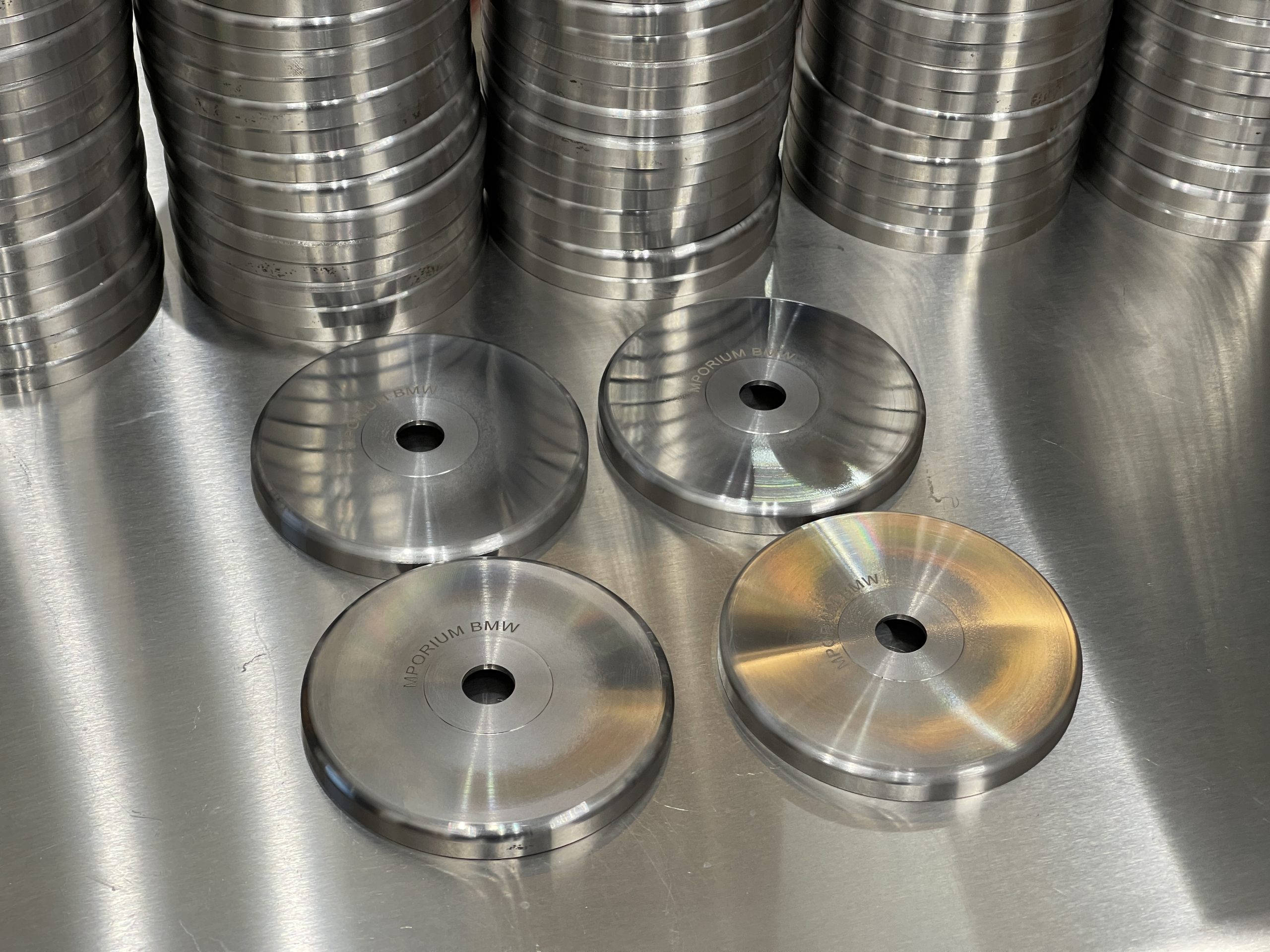

These VANOS cover cups are an Mporium exclusive, used in house since 2017 as our answer to the failure-prone plastic covers provided by BMW in their S65 engine. Now available to the public!  Each order includes four cups, enough for one S65 engine.

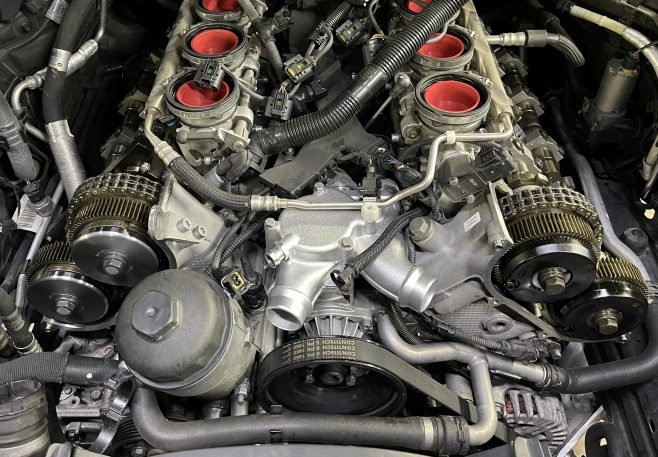

The function of the plastic covers and these cups are to cover the coiled VANOS return spring and prevent the spring from walking forward and off of their outer retaining pins, potentially resulting in catastrophic damage inside the engine.  Failed plastic covers find their way into the oil sump, often being ground up between the timing chains and engine up in the oil sump.  Debris in the oil sump results in oil starvation leading to premature rod or main bearing damage and ultimately, engine failure.

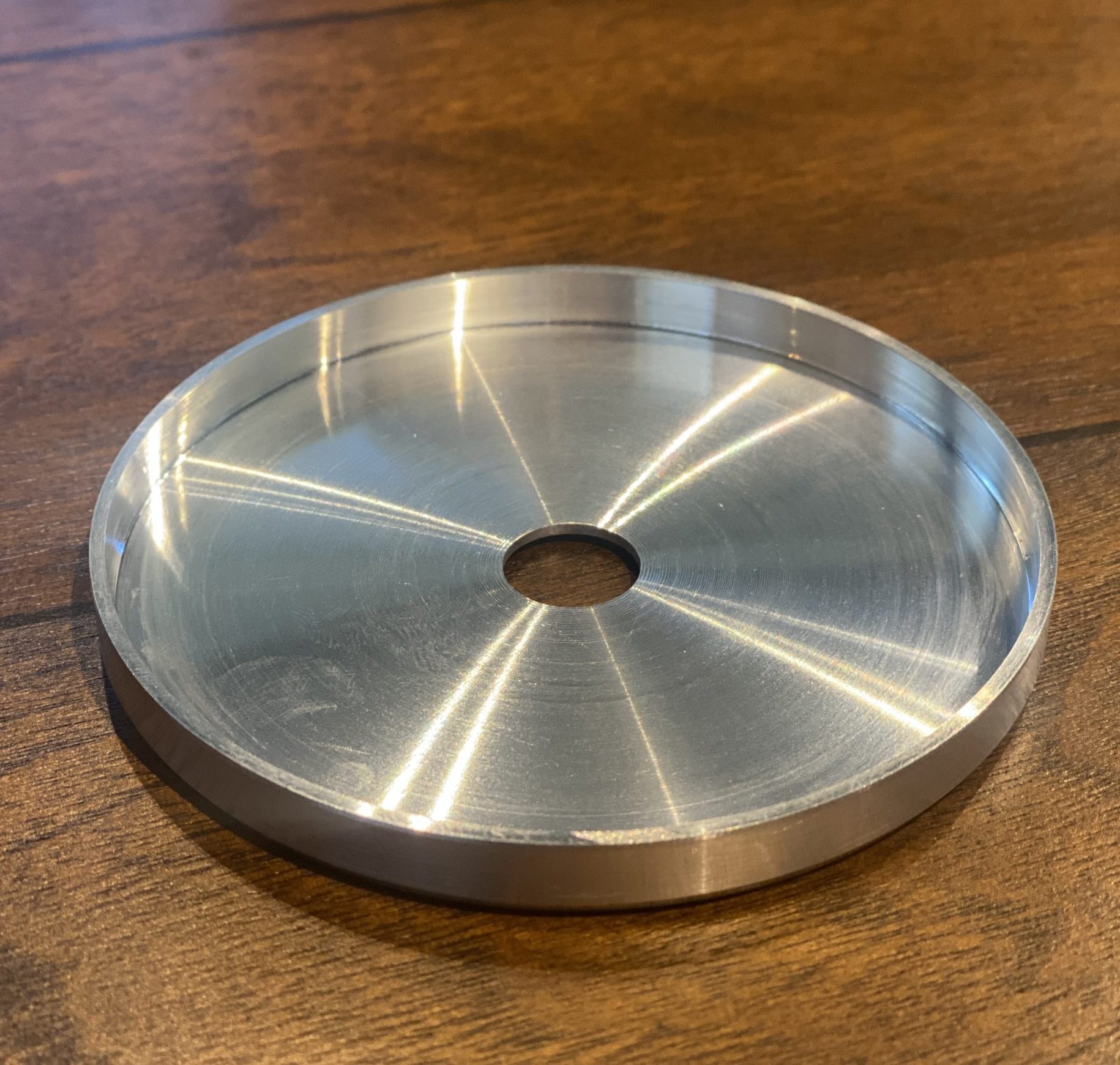

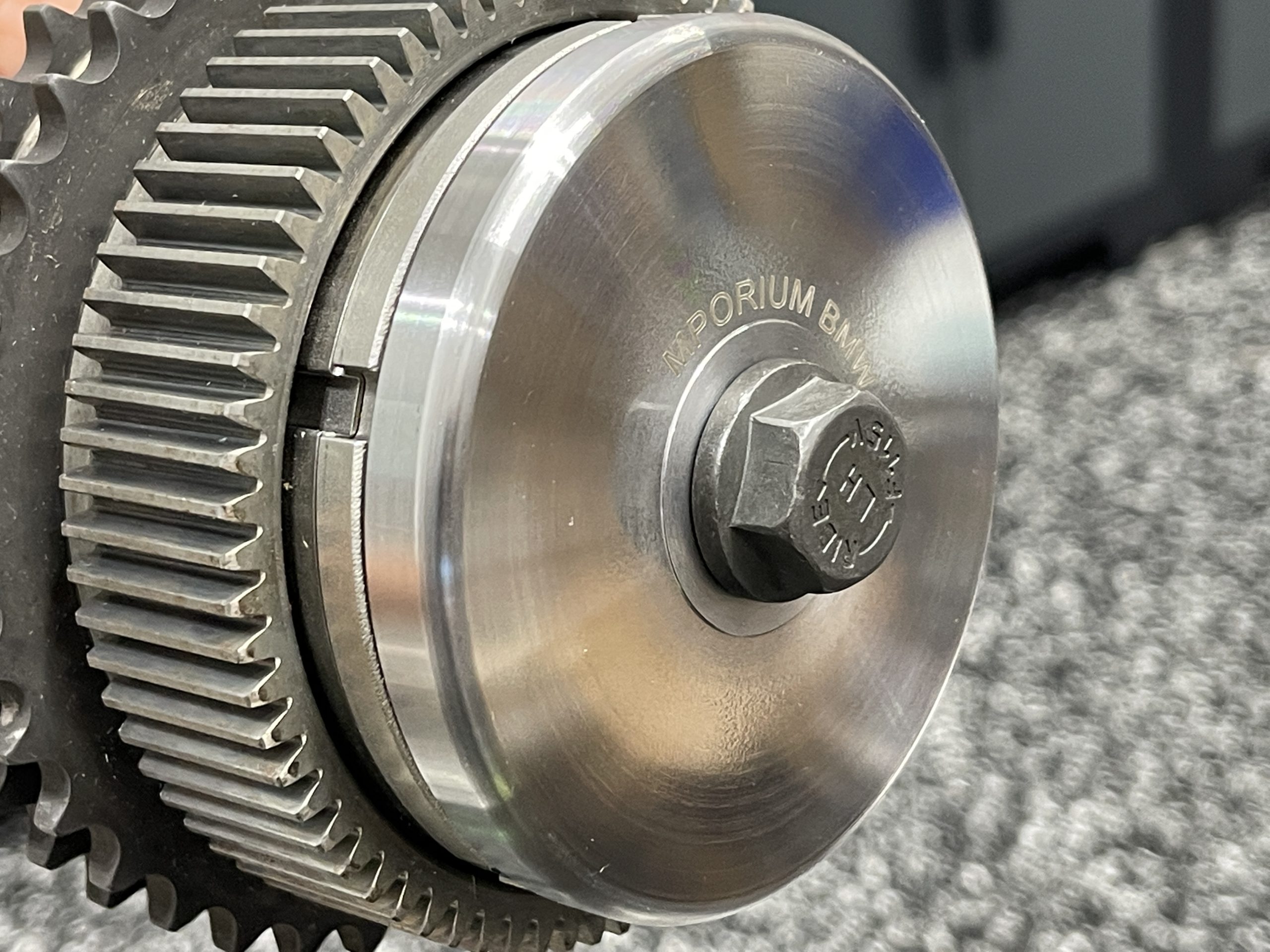

More elegant than flat washers, our design surrounds the spring coil for a streamlined assembly. These cups replace the captured washer underneath each VANOS central bolt (4 per engine), which results in a fully captured and permanent solution. Unlike various ‘clip-on’ solutions which can loosen over time or come off, these are the only way to ensure a truly fail-safe and life-long assembly. Since the central bolts must be released to install these cups, re-timing the engine is mandatory, therefore recommended for professionals or the experienced DIY’er familiar with the S65 cam timing system. We recommend the official BMW timing procedure as shown in the TIS database. Each purchase includes a printed copy of these instructions for cam timing and checking timing.

If you’re performing a valve cover service, it’s a great time to perform this upgrade to bullet-proof the cam timing system!

• 100% domestic material, machined in and shipped from Texas. Supports Texas small businesses!
• Each set includes four pieces, enough for one S65 engine.
• Hardened chromoly steel, will never fail, erode, or loosen over time.
• Each cup replaces the captured washer underneath each VANOS central bolt. (4 per engine).
• Printed TIS copies for timing and checking are included with installation kit.
• No mechanics tools or cam timing tools included (required).
• Professional installation recommended.
• Worldwide shipping and bulk orders available, contact us.

Installation Kit:

The following specific OEM parts must be replaced during installation of our VANOS Cups and are included within the “Installation Kit” option on this page. Besides being exorbitantly expensive at dealer prices, this kit will save you time as these somewhat obscure parts are not often found in stock all in one place.

• 11367840998 Central Bolt (4)
• 11367839292 Vanos O-Rings, upgraded FKM material (4)
• 11317507432 Crush washers at tensioners (2)
• 11127838162 Upper timing cover gaskets (2)
• Official BMW technical literature for setting and checking camshaft timing (1)

Note: The installation kit includes the listed parts only. It does not include any valve cover components or other gaskets or seals associated with valve cover replacement. There is a 15% restocking fee if returns are requested.
